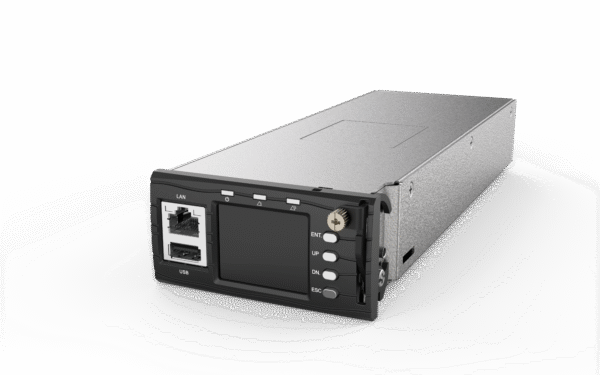

IPSM-C101

Unified Control for Rectifier, MPPT, Battery, and Load Management

IPSM-C101 is the new generation DC power controller developed by I-Power . It offers many features and functions, with a more robust, user-friendly, and easy-to use interface. This power controller system is formed by this control module together with I-Power rectifier modules, solar modules and distribution plug-in frame (or distribution cabinet), realizing interactive operations in human-machine interfaces, controller of system operating state, intelligent battery management, and automatic energy-saving management. Northbound integration protocol: Modbus, SNMP V3, YDT-1363, CAN.

IPSM-C101 controller does support up to 4 independently metered load outputs, making it ideal for dual or multi-tenant telecom power deployments. Each output can be assigned, measured, and monitored individually, supporting precise billing and energy management for each tenant or system branch

Category: Controller

Key Features

Applications

This controller is for indoor/outdoor power supply use. In addition to controlling of rectifer modules, AC/DCdistribution, IPSM C101 manages battery charge, discharge, test, maximizes battery capacity and lifespan. With improved memory, IPSM C101 can store mass alarm/event and data logs for system performance analysis and fault diagnose. Dl/DO connectors and RS485/Ethernet ports provide flexible extension function and parameters setting, software and logs downloading uploading, remote monitor system accessing.

Communication

The Controller can communicate with the host computer in 2 modes: RS485 and Ethernet (WEB and SNMP). It can communicate with rectifer and solar modules in CAN bus mode.
3 southbound RS485 for battery BMS or extension
For remote and local monitor system via WEB browser, controlling, parameters upload/download data load. function boards.
SNMP protocol supports GET, SET and TRAP on Ethernet

DI/DO

Support up to 12 user digital input interfaces at maximum
8 groups of dry contact outputs freely configurable

Screen and LEDs

160X128 LCD screen display running information and local setting interface.
Green/Yellow/Red LEDS indicate running status for local instant diagnose

Measurement

Analog Value Measurement
Digital Value Measurement

Alarm history and event history

100000 alarms history and 100000 events history store
FlFO for system analysis

Data log store (advanced version)

200000 data logs including bus voltage, load current,battery current and temperature with time tag.

Alarm/Events

SPD alarm
Load Disconnected
Rectifer on/off status
Battery charge over-current
Confgurable digital input alarm
Battery Disconnected
Current imbalance
Battery temperature alarm
Rectifer communication fail
Solar faultAC power failure
Ambient temperature alarm
Rectifer AC input failure
Solar fan fault
Load fuse alarm
Batteryimbalanc
Manual mode alarm
Solar protect
Battery fuse alarm
System energy-saving mode
AC over voltage and under voltage
Rectifer faulteSolar on/off status
Energy-saving fault
Battery discharge
Battery test fail
Solar communication fail
Rectifer fan fault
DC over voltage and under voltage
Rectifer protect

Description

Electrical Specification
Item	Parameters	Description
Rated input voltage	48 Vdc	24~60Vdc
Maximum current	300 mA
Standby Power Consumption	≤7W
Output voltage	12V
Output current	100mA(MAX)

Safety and Certification
Item	Parameters	Description
Safety	Passed the CE certification
RE	Class B (EN 55032)
CE	Class B (EN 55032)
CS	Criterion:A(EN 55035)
RS	Criterion:A(EN 55035)
Surge	Line-line ±0.5 KV	Power supply port
Surge	Line-PE 2KV/12Ω	Power supply port
Surge	Line－ PE 2KV/12Ω	FE,North RS485, Limited shielded network cable
MTBF	>=0.1Million H	With the Telcordia SR332, method 1 reliability, at 25 ℃
ROHS	ROHS R6	The material is ROHS2.0 compliant with lead-free soldering

Environmental
Item	Parameters	Description
Operating temperature	-40℃~+70℃	Note: LCD Operating temperature range – 20 ℃ ~ + 70 ℃
Storage temperature	-40℃~+70℃	Note: LCD Storage temperature range -20℃ ~ +70 ℃
Operating humidity	5% ~ 95%	(MAX 50°C No condensation)
Storage humidity	5% ~ 95%	(MAX 50°C No condensation)
Altitude	0 ~ 4000m	Working temperature derating in 3 0 0 0 m ~ 4 0 0 0 m environment, every 200m, working temperature drop by 1°C
Protection	IP20	with the backboard

Mechanical Specification
Item	Parameters	Description
Dimensions	85 mm (H) × 40.5 mm (W) × 230 mm (D) (±0.5mm)	For slot design, please contact us for 3D model of the module
Weight	≤1Kg	Without packaging

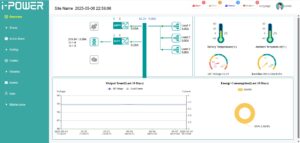

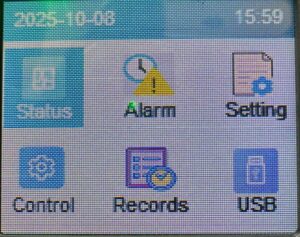

Dashboard Appearance

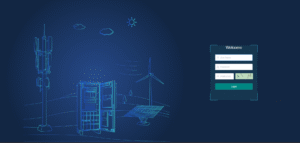

Web Base Login

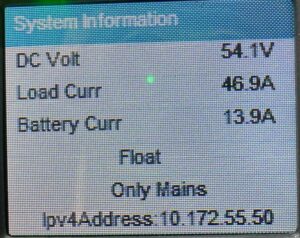

Overview Display

Multi Tenant Setting

2.1. Status Input

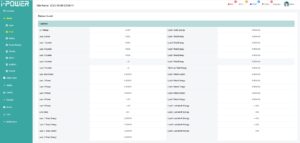

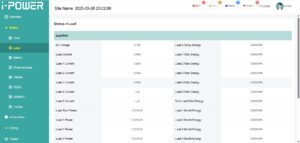

2.2. Status Load

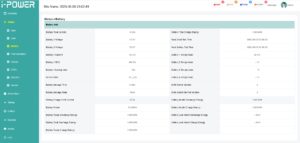

2.3. Status Battery

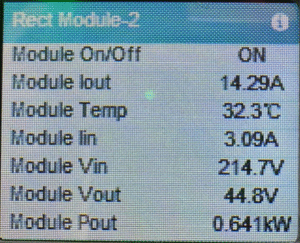

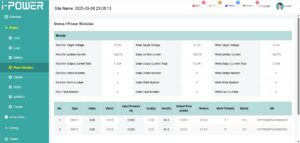

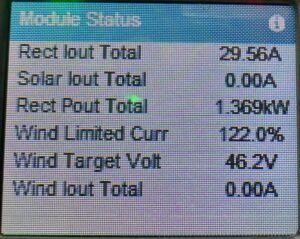

2.4. Status Power Modules

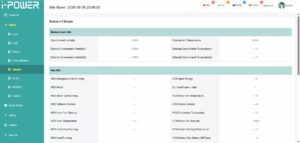

2.5. Status Climate

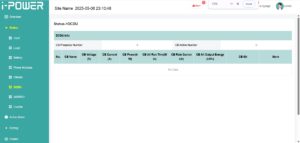

2.6. Status DC/DU

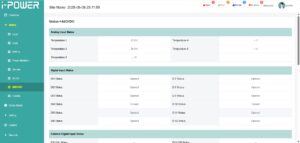

2.7. AI / DI / DO

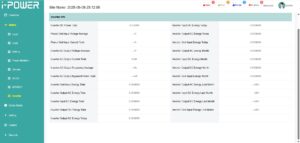

2.8. Inverter Status

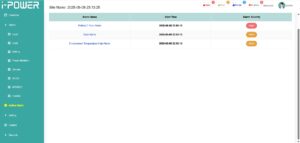

3. Active Alarms

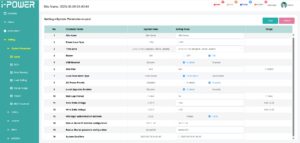

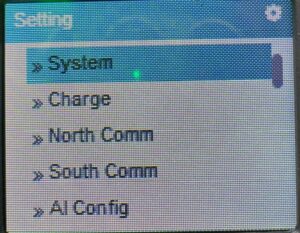

4. Parameter Setting

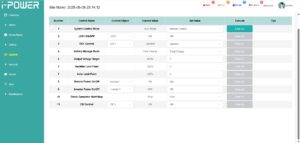

5. Control System

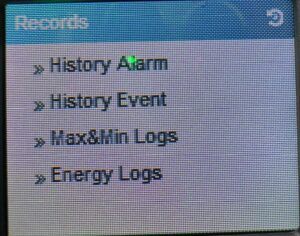

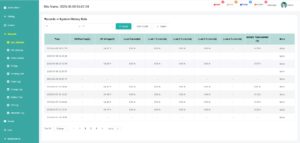

6. History Records

7. Assets

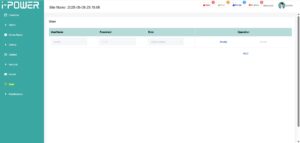

8. User

Network Topology Design

1. Port:

CAN1/CAN2: Supports communication with BS, DG and other devices.

RS485: Supports connection to FSU, HEX, Smart DC/DC and AC meter

Ethernet interface: lt is used to import configuration export records, and upgrade software on the PC.

2. Adaptation Protocol:
YDT-1363/Modbus/SNMP V3: Used for communication with the Network Management System, supporting some functions, with plans for further expansion in the future.

3. Application Scenarios:

Energy Management: Intelligent energy management and scheduling is realized through multiple interfaces and devices.

Condition Monitoring: Connect to various sensors and measurement devices through interfaces to enable realtime status monitoring and data statistics.

Main Features

Data sampling & Management
No	Feature description
1	Rectifier data sampling and management
2	Solar Module data sampling and management
3	Wind Module data sampling and management
4	DC/DC Module data sampling and management
5	DC/AC Module data sampling and management
6	HVDC Module data sampling and management
7	Narada lithium battery Pack data sampling
8	SHOTO lithium battery pack data sampling
9	Any lithium battery based on Modbus/YDT-1363 protocol of RS485 or CAN interface
10	Jiangsu Yaao battery inspection instrument data sampling
11	Smart AC meter or self-developed AC metering board data sampling
12	Smart DC meter data sampling
13	Smart DG data sampling
14	Smart ATS data sampling
15	Climate unit data sampling
16	Smart CB data sampling and management
17	Energy statistics

GUI
No	Feature description
1	LCD menu management
2	Web applications based on HTTPS protocol

Northbound Protocol
No	Feature description
1	SNMP V3(Supports GET/SET/WALK and 4 Trap servers)based IPV4 and IPV6
2	YDT-1363
3	Modbus Protocol

Battery Management
No	Feature description
1	Boost/Float Charging Management
2	Current Limit Management
3	Temperature compensation
4	LVD
5	Battery Test(Auto/Manual)
6	Midpoint voltage sampling
7	SOC calculation
8	Load Shifting
9	Lithium battery management

Energy Management
No	Feature description
1	Energy input priority management
2	Rectifier module ECO management
3	Rectifier module drying management

DG Management
No	Feature description
1	Turn on and off according to battery SOC
2	Turn on and off according to DC Voltage
3	DG Test
4	Remaining fuel capacity calculation

Environmental data
No	Feature description
1	Temperature, humidity, tilt, vibration, water leakage, smoke, access control (DI), and U-bit (U-bit Controller is not implemented and is recorded by the NMS)

Logs Management
No	Feature description
1	50000 pieces of history data records
2	200000 pieces of history alarm records
3	5000 pieces of Battery Test records
4	5000 pieces of energy logs
5	100000 pieces of event logs
6	Daily power record 1 year
7	Duration Log Logs record 1 year
8	10000 pieces of battery charging records
9	10000 pieces of battery discharging records
10	Extremum recording
11	Historical data records cannot be viewed on the LCD. Other logs can be viewed on the LCD
12	The preceding log records can be viewed on the Web UI
13	All the preceding log records can be exported to excel files in text format on the Web
14	All the above log records can be exported as excel files in text format on USB flash drives

Alarm Management
No	Feature description
1	Alarm blocking
2	Alarm relay linked to DO
3	Alarm Severity (Major, Minor, Info, Blocked) Note: Blocked alarms are not displayed, but you are required to record historical alarms to facilitate fault tracing
4	Dry contact input alarms

Language
No	Feature description
1	Chinese/English/Others

Software update
No	Feature description

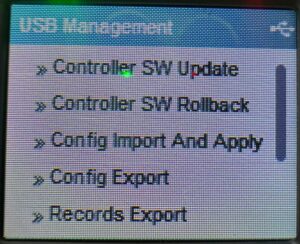

1	Controller local online update via USB
2	Power conversion module local online update via USB
3	Contoller software online update via Web (based on https, Multi-site simultaneous updates can be made via NMS)
4	Power conversion module software online update via Web (based on https, Multi-site simultaneous updates can be made via NMS,The same site is updated module by module)

Configure parameters
No	Feature description
1	Configuration file imported via web as a CSV file
2	Configuration file Exported via web as a CSV file
3	Configuration file imported via USB as a CSV file
4	Configuration file Exported via USB as a CSV file

Others
No	Feature description
1	Multi-tenant management
2	Manual control mode
3	IPv4/ IPv6 dual- stack
4	Automatic calibration time based on NTP protocol
5	Mail sending based on the SMTP protocol
6	Support TFTP protocol
7	Support 4G/5G networks
8	Support NB-IOT networks
9	Wifi hotspot available
10	Support Bluetooth communication
11	Support Zigbee communication
12	Support GPS positioning
13	Support Beidou Navigation Satellite System
14	USB expansion RS485
15	USB expansion RS32
